How to secure BitLocker configurations

With the introduction of Windows Server and Windows Vista came an additional security feature, BitLocker Drive Encryption (BDE, or BitLocker), which protects the confidentiality and integrity of the operating system volume during the boot sequence and while the operating system is not loaded. Windows Server will also extend this capability to protect data volumes as well. BitLocker was designed to mitigate offline attacks, such as removing the physical drive from a lost or stolen laptop and accessing the data from an attacker controlled operating system. In the following section we discuss the various configuration options for BitLocker and their prerequisites.

BitLocker configurations

As mentioned, BitLocker can be configured in a variety of ways. In this section we discuss each, along with its strengths, weaknesses and prerequisites. BitLocker can be configured to operate in the following modes:

Tip: Microsoft provides an excellent step-by-step procedure for configuring your system in each of these scenarios.

Depending on the desired configuration for BitLocker, your system must also satisfy other hardware and software prerequisites. To determine whether your Windows Vista computer meets these

Digg This!     StumbleUpon     Del.icio.us

RELATED CONTENT Windows Vista security issues, updates and alerts Ten ways to sell security to management Improve Windows security with our top 10 tips Windows Vista management tutorial Minasi says Vista SP1 solves problems, adds new ones Does Vista's strong security make it better than XP? Are Windows Vista's features silencing critics? Managing single sign-on security burdens in Windows Top 10 ways to improve Windows Vista security A Windows security checklist for IT managers Unauthenticated vs. authenticated security testing Windows desktop security tips How Windows 7 stands up to security tests Securing sensitive data on Windows-based laptops Gathering and documenting your Windows desktop security policies Windows desktop security standards documentation best practices Desktop security preparation for a new wave of Windows apps Four Internet Explorer 8 group policy security settings The state of enterprise security and emerging threats in 2009 Why should Windows shops use Microsoft Baseline Security Analyzer? A first look at Windows 7 security enhancements Using Sysinternals tools in security management scenarios

RELATED GLOSSARY TERMS Terms from Whatis.com − the technology online dictionary drive-by download  (SearchEnterpriseDesktop.com)

RELATED RESOURCES 2020software.com, trial software downloads for accounting software, ERP software, CRM software and business software systems Search Bitpipe.com for the latest white papers and business webcasts Whatis.com, the online computer dictionary

requirements, perform the following steps:

If your computer configuration meets all prerequisites, you will see the screen shown in Figure 12-1.

At a high level, these configuration options represent different combinations of the following:

Of these, the most secure configuration is a system that has a TPM and utilizes two-factor authentication, for this reason: The TPM provides BitLocker with the ability to validate each component of the boot process. This ensures the platform is in a known secure state before decrypting the volume.

With most authentication systems, barring implementation flaws, the degree of difficulty to authenticate as another principal increases with the number of "factors" -- each factor introduces an additional test that must be passed by the entity attempting to authenticate. Common authentication factors include the following:

[IMAGE]

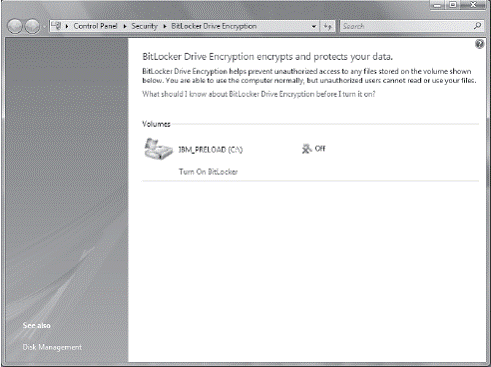

Figure 12-1: system that satisfies BitLocker prerequisites

Currently, BitLocker supports two of these: something you have (a USB or TPM) and something you know (a PIN). In the next section, we take a deeper look at the desired solution -- BitLocker equipped with a TPM and an additional form of authentication, such as a PIN or USB token.
